EV Charger Installation Leicester: What Does an Installation Involve?

An EV charger installation typically involves checking the existing electrical supply, planning the cable route, installing suitable electrical protection, mounting and connecting the charger, and testing the completed installation. The exact work required depends on the property, existing electrics and where the charger will be positioned.
Completed Easee home EV charger installation on brick wall in Leicester

A Real EV Charger Installation from Voltex

This recent installation gives a useful look at the work that goes into fitting a home EV charger, rather than showing only the finished result.

The job included creating a suitable cable route, installing dedicated electrical protection, mounting and connecting the Easee charger, and carrying out electrical testing once the installation was complete.

For homeowners looking for EV charger installation in Leicester, the exact installation will vary depending on the property, existing electrical supply and where the charger needs to be positioned.

Installation at a glance

  • Home EV charger installation
  • Easee EV charging unit
  • Dedicated electrical protection
  • New cable route to the charger
  • External wall-mounted installation
  • Electrical testing on completion

What we’ll cover

1. Planning the EV Charger Installation

Before fitting an EV charger, the installation needs to be planned around both the property and its existing electrical installation. This includes considering where the charger will be positioned, how the new supply cable can reach it and what electrical protection is required.

For this installation, an Easee EV charger was selected for an external brick wall. The photographs show the charging equipment and the dedicated electrical equipment used as part of the installation.

Planning the route before work begins also helps keep the finished installation as neat as possible. The shortest route is not always the most suitable, so accessibility, cable protection and the position of the existing electrical supply all need to be considered.

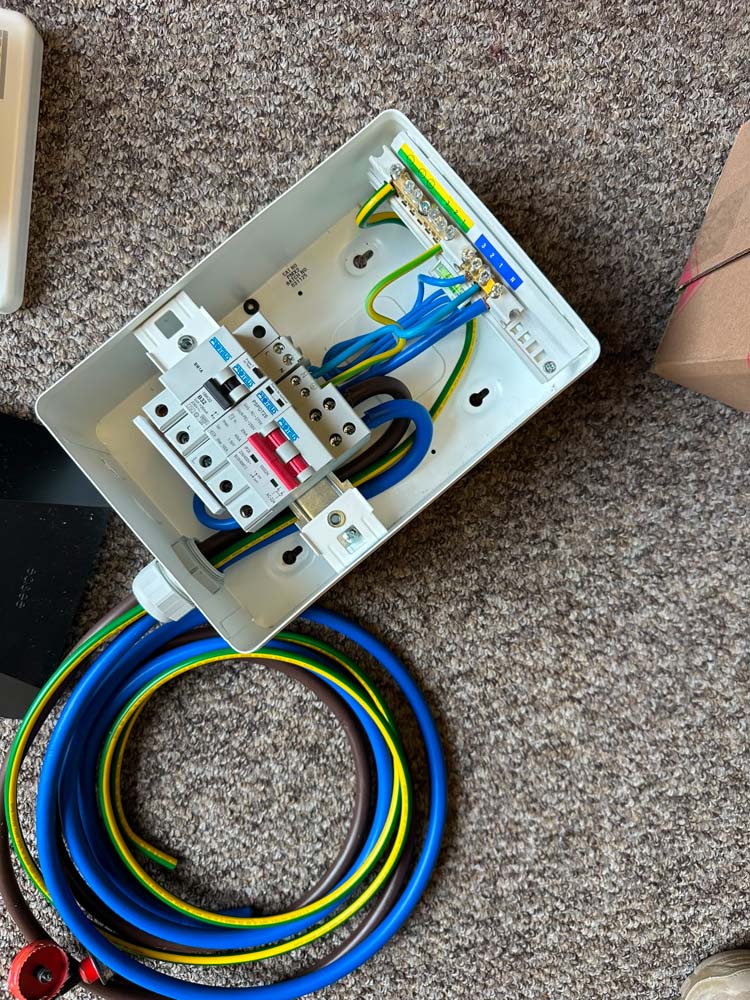

Dedicated EV charging electrical protection unit and cabling before installation

2. Installing the Electrical Supply and Protection

An EV charger is a significant electrical load, so the installation is about more than simply mounting a charger on the wall. The electrical supply and protective equipment need to be suitable for the charging circuit and the individual installation.

Dedicated EV charging electrical protection unit and cabling before installation
Dedicated EV charging electrical protection unit and cabling before installation

As these photographs show, this job included dedicated electrical equipment installed alongside the property’s existing consumer unit. The new charging circuit could then be supplied and protected separately.

This is one reason a professional EV charger installation in Leicester should begin with an assessment of the existing electrics. What is required can differ between properties, particularly where an existing consumer unit or electrical installation is older.

3. Creating a Neat Cable Route to the Charger

Once the electrical side of the installation had been prepared, the new supply needed to be routed from the electrical equipment to the position of the charger.

EV charger supply cable routed neatly inside property during installation

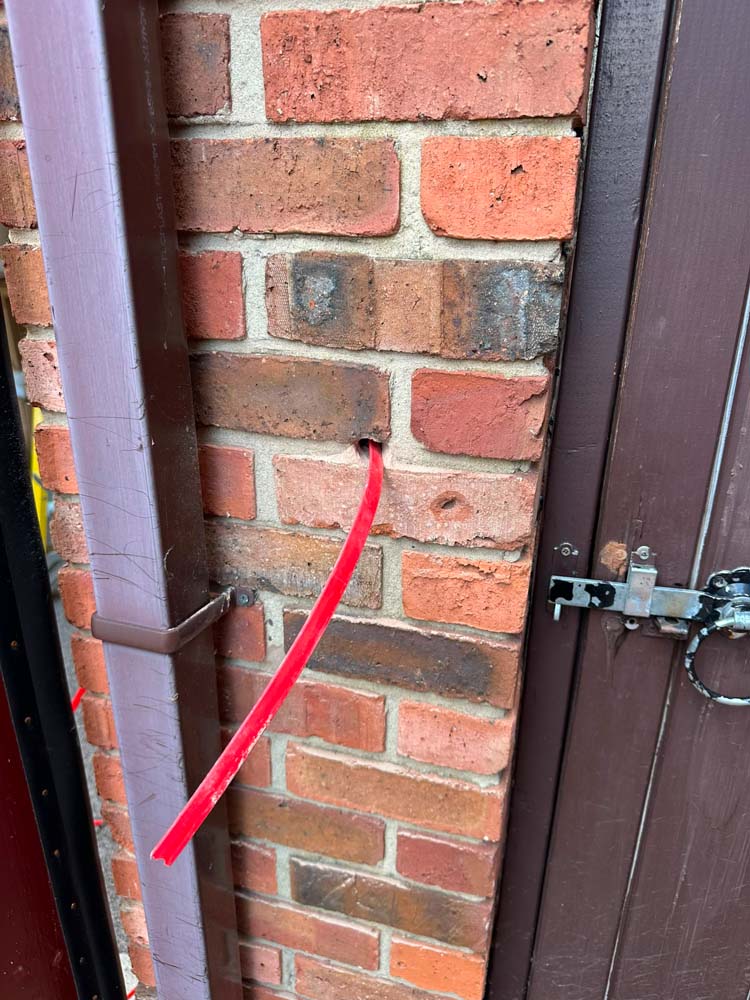

EV charger cable route prepared through exterior brick wall

The photographs show the cable passing through the property and out through the external brickwork at the charger location. Planning this route carefully helps reduce unnecessary visible cabling while still providing a practical and protected route to the charger.

Every property is different, so the cable route can have a significant effect on the work involved. The distance from the electrical supply, wall construction and final charger position can all influence the installation.

4. Mounting the EV Charger and Understanding Installation Cost

With the electrical supply and cable route prepared, the next stage was mounting the Easee charger on the exterior wall and making the final connection.

The position of the charger is important for convenience, but it can also affect the cost of an EV charger installation. A charger positioned close to the electrical supply may require less cabling and labour, while a longer or more complicated route can increase the work involved.

That is one of the main reasons EV charger installation costs can vary between properties, even when the same charger is being fitted.

Easee EV charger backplate fitted to exterior brick wall during installation
Completed Easee home EV charger installation on brick wall in Leicester

What can affect EV charger installation cost?

The charger itself is only part of the overall price. The installation cost can also be influenced by the property and the electrical work required.

  • Cable length: longer routes usually require more materials and labour.
  • Wall construction: routing through brickwork, garages or other parts of the property can affect installation time.
  • Existing electrical installation: additional work may be required if the existing equipment is not suitable for the new charging circuit.
  • Charger location: the final position can affect how straightforward the cable route is.
  • Electrical protection: suitable protective equipment may need to be installed as part of the charging circuit.
EV CHARGER INSTALLATION COST LEICESTER

How Much Does an EV Charger Installation Cost in Leicester?

As a guide, EV charger installation labour typically starts from around £500, with more involved installations costing up to around £1,000. A typical installation often falls around £700–£800 for labour, before the cost of the charger itself.

EV charger supply can vary depending on the brand and features, usually ranging from around £350–£800. The final cost depends on the charger selected, cable route, existing electrical installation and any additional work required at the property.

We have published a full EV charger installation cost guide for Leicester explaining typical labour costs, charger prices and the main factors that can increase or reduce the total price.

View EV Charger Installation Costs in Leicester

5. Testing the Completed EV Charger Installation

Once the Easee charger had been mounted and connected, the installation needed to be checked and electrically tested before being put into service.

Testing is an important part of a professional EV charger installation. The job isn’t finished simply because the charger powers up; the charging circuit, electrical protection and completed installation need to be checked before regular use.

Voltex testing completed Easee EV charger installation in Leicester

Why is testing important after an EV charger is installed?

EV chargers can place a significant electrical load on a property for extended periods, so correct installation, protection and testing are important parts of the process.

  • Electrical testing: the new charging circuit can be checked before it is put into regular use.
  • Protective equipment: the protection installed for the charging circuit can be checked as part of the completed installation.
  • Final inspection: the charger, connections and visible installation can be inspected once the work is complete.
  • Commissioning: the finished charger can be checked before being handed over for everyday charging.

This final stage is one of the reasons EV charger installation should be treated as professional electrical work rather than simply fitting a piece of equipment to a wall.

6. What Can Homeowners Learn From This EV Charger Installation?

This installation shows why fitting a home EV charger involves more than choosing a charger and mounting it to a wall. The electrical supply, cable route, protective equipment, charger position and final testing all form part of the job.

If you’re planning an EV charger installation in Leicester, thinking about a few practical details before requesting a quotation can help make the process smoother.

Things to consider before installing an EV charger

  • Think about where you normally park. The charger should be positioned where the charging cable can comfortably reach the vehicle.
  • Consider the cable route. The distance and route between the electrical supply and charger can affect the work involved and the overall installation cost.
  • Check the existing electrical installation. Older electrical equipment or a more involved property layout may require additional work before the charger can be installed.
  • Choose the charger around how you will use it. Price matters, but smart features, compatibility and everyday convenience should also be considered.
  • Allow for installation cost as well as charger cost. Labour, cabling, electrical protection and any additional work can represent a significant part of the total price.
Electrical Contractors in Leicester
Get a Free Quote
call Us

A professional survey or quotation should take these factors into account before work begins. This helps determine the most suitable installation method and gives a clearer idea of the overall cost.

For more information about local installations, visit our EV charger installation in Leicester service page.

EV charger installation Leicester FAQs

  • How long does an EV charger installation take?

    The time required depends on the property, cable route, existing electrical installation and the work needed to provide the charging circuit. A straightforward home installation may often be completed within a day, while more involved installations can take longer.

  • How much does an EV charger installation cost in Leicester?

    As a guide, EV charger installation labour typically starts from around £500, with more involved installations costing up to around £1,000. A typical installation often falls around £700–£800 for labour, before the cost of the charger itself.

    For a more detailed breakdown of charger prices, labour and the factors that affect the final price, read our EV charger installation cost guide for Leicester.

  • Does an EV charger need its own electrical protection?

    EV chargers are significant electrical loads, so the charging circuit needs suitable electrical protection for the individual installation. The existing electrical supply and equipment should be assessed so the appropriate arrangements can be used.

  • Where should an EV charger be installed at home?

    A practical position is usually close to where the vehicle is normally parked, while also allowing a suitable cable route back to the electrical supply. Charging cable reach, access, the appearance of the finished installation and the layout of the property should all be considered.

  • Can I install an EV charger myself?

    EV charger installation involves electrical work, protective equipment, connection and testing. For safety and compliance, Voltex recommends using a suitably qualified EV charger installer rather than attempting the electrical installation yourself.

  • What can make an EV charger installation more expensive?

    Installation costs can increase where the charger is a long distance from the electrical supply, the cable route is more complicated, additional electrical work is required, or the existing installation needs work before the charger can be connected.

    This is why two properties using the same EV charger can still have different installation costs.

Planning an EV charger installation in Leicester?

Visit our EV charger installation in Leicester page to find out more, or contact Voltex Electrical Services Ltd to arrange a quote.
